19 111,00 zł

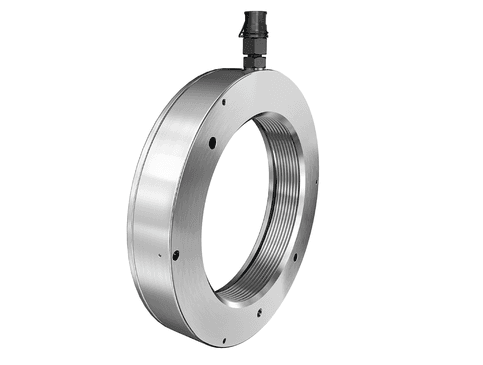

HYDNUT..-E
| Class description short | Hydraulic nut |
| Mass netto | 29.5 kg |
| Width | 62.0 mm |
| Brand | Schaeffler |
| Delivery scope | 1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual |
| Drive-up force, max. | 1246.0 kN |
| Outer Diameter | 415.0 mm |
| PFAS | nein |
| Piston surface | 249.2 cm² |
| Pressure, max. | 500.0 bar |
| Stroke, max. | 13.0 mm |
| Thread | Tr310x5 |
| Width press ring | 52.0 mm |
| Series | E |
