19 466,10 zł

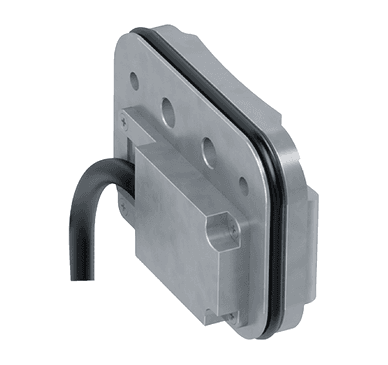

Measuring heads, for radial screw mounting
| Class description short | sensing head |
| Mass netto | 115.0 g |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bore distance | 18.0 mm |
| Brand | INA |
| Cylinder head screws | 2x ISO4762-M6x20-8.8 |
| Diameter bearing outer ring | 280.0 mm |
| Distance bearing center measuring head | 153.2 mm |
| Electronic interface | EnDat22 |
| Height | 49.0 mm |
| PFAS | nein |
| Pins plug connector | 8.0 |
| Tightening torque | 5.0 Nm |
| Tightening torque lower tolerance | -0.5 Nm |
| Tightening torque upper tolerance | 0.5 Nm |
| Cable Length | 1 m |
| Thread plug connector | M12x1 |
