17 772,15 zł

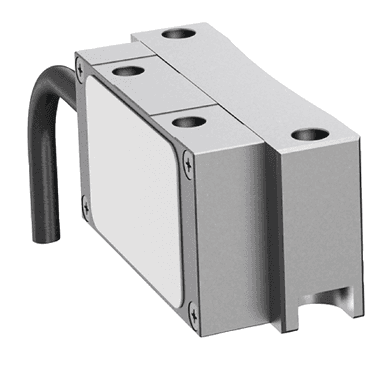

Measuring heads, for axial screw mounting
| Class description short | sensing head |
| Mass netto | 68.67 g |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bore distance | 51.0 mm |
| Brand | INA |
| Cylinder head screws | 2x ISO4762-M4x35-8.8 |
| Diameter bearing outer ring | 280.0 mm |
| Distance bearing center measuring head | 143.0 mm |
| Electronic interface | Fanuc Serial 𝛼 |
| Height | 26.0 mm |
| PFAS | nein |
| Pins plug connector | 8.0 |
| Pitch circle radius bores | 129.5 mm |
| Tightening torque | 2.0 Nm |
| Tightening torque lower tolerance | -0.2 Nm |
| Tightening torque upper tolerance | 0.2 Nm |
| Cable Length | 1 m |
| Thread plug connector | M12x1 |
