181 191,67 zł

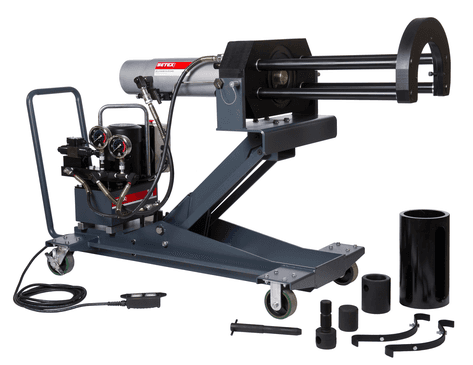

BETEX device for mounting/dismounting of tapered or cylindrical roller bearing units in wheelset bearings of rail vehicles, with manual valve, proceed way longitudinal
| Class description short | Mobile hydraulic device |
| Mass netto | 560.0 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Amperage | 12.0 A |
| Availability | Product is manufactured to order. Request with specification of the application case to customer service. |
| Brand | Betex |
| Castors | 2 swivel castors with brake function, 2 fixed castors |
| Current type | AC power |
| Dimensions [LxWxH] (mm) | 2210 x 652 x 900 |
| Functional principle | electrically driven hydraulic unit for function main cylinder and height adjustment, remote control |
| Height adjustment | hydraulically by means of aggregate |
| Max. contact force cylinder | 660.0 kN |
| Max. operating pressure | 700.0 bar |
| Max. working stroke cylinder | 392.0 mm |
| PFAS | nein |
| Power frequency | 50 – 60 Hz |

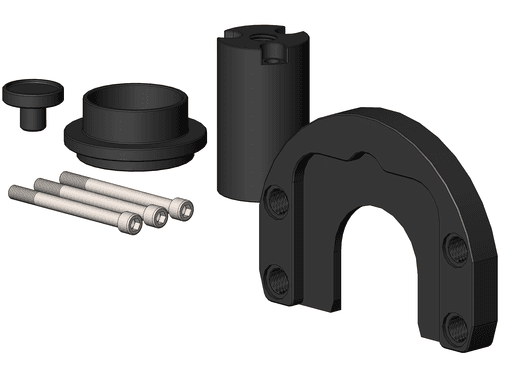

| Usability | only in conjunction with bearing/application-specific tool set (not included in delivery, separate on request) |
| Voltage | 230.0 V |
| Working height range [bottom – center axis cylinder] (mm) | 370 – 1050 |
| Series | BPP/BPPS |
