352 259,82 zł

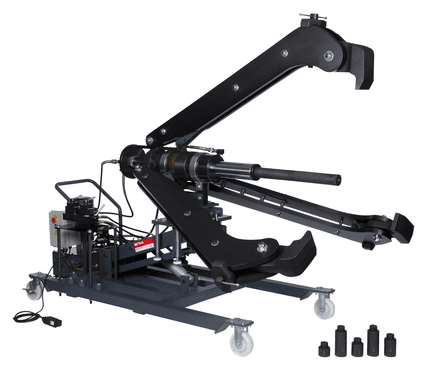

BETEX HXPM, 3-arm self-centering, max. pull-off force 1470 kN, mobile
| Class description short | Mobile hydraulic heavy duty hook puller |
| Mass netto | 1200.0 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | Betex |
| Castors | 2 swivel castors with brake function, 2 fixed castors |
| Current type | Three-phase AC |
| Dimensions [LxWxH] (mm) | 2990 x 1030 x 1390 |
| Functional principle | electrically operated hydraulic unit for main cylinder, height adjustment as well as opening and closing of the gripper arms, safety valve prevents overloading |
| Grip depth, max. | 1175.0 mm |
| Grip width, max. | 1650.0 mm |
| Grip width, min. | 300.0 mm |
| Included in delivery | Remote control, 7 adapter pieces (total length 1125 mm), security blanket |
| Max. operating pressure | 700.0 bar |
| Max. working stroke main cylinder | 330.0 mm |
| PFAS | nein |
| Power frequency | 50 – 60 Hz |
| Pulling force | 1470.0 kN |
| Voltage | 400.0 V |
| Working height range [bottom – center axis cylinder] (mm) | 830 – 1330 |
| Series | HXPM |
