38 694,82 zł
Laser system for aligning shafts
| Class description short | Shaft alignment device |
| Mass netto | 5.7 kg |
| Brand | Schaeffler |
| Dimensions case (mm) | 500 x 410 x 140 |

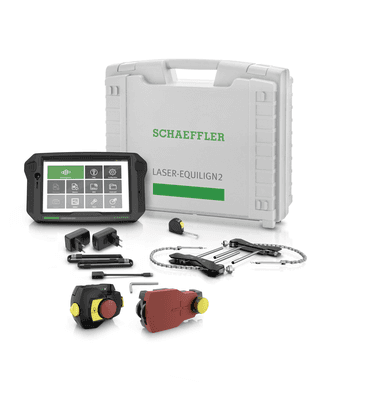

| Included in delivery | 1 pc. handheld tablet, 1 pc. charger with adapters, 1 pc. shaft bracket, 1 pc. laser/sensor, 1 pc. reflector with roof prisma, 1 pc. micro USB cable, 1 pc. USB C data cable, 1 pc. USB A USB C adapter cable, 1 pc. tape measure, 1 pc. hex wrench SW4, 1 pc. case |
| Measuring distance | 0 – 5 m |
| Measuring range inclinometer | 0° – 360° |
| Operating temperature | -10°C – +50°C |
| PFAS | nein |
| Protection class handheld | IP 68 |
| Protection class laser/sensor | IP 65 |
| Active clock mode | yes, max. 4 measuring points |
| Communication | Bluetooth |
| Display | 8'' TFT, 1280 x 800 Px. |
| Laser technology | Single Laser |

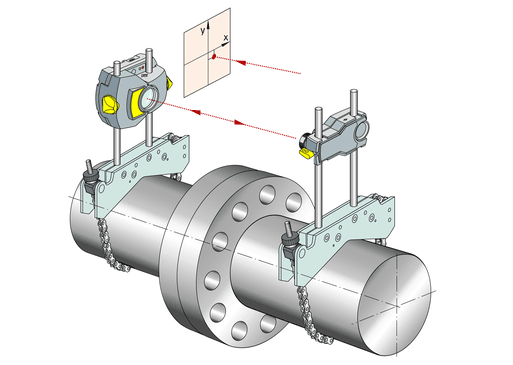

| Measuring principle | Coaxial, reflected laser beam |
| Operating time | up to 10 hours |
| Safety class laser | Class 2 acc. to IEC 60825-1 |
| System solution | Tablet-based, kiosked mode |
| Voltage supply | Li-Ion rechargeable battery |
