194 431,76 zł

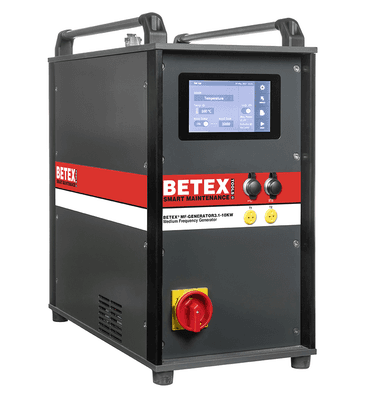

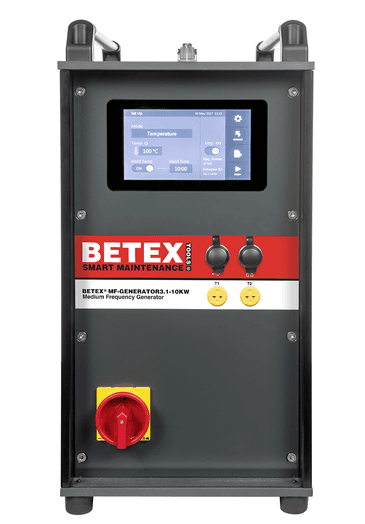

MF-GENERATOR 3.1 - 10kW
| Class description short | Medium frequency generator |
| Mass netto | 46.0 kg |
| Amperage | 16.0 A |
| Brand | Betex |
| Current type | Three-phase AC |
| Digital readings frequency | Actual value on touchscreen |
| Digital readings power | Actual value on touchscreen |
| Digital readings temperature | Setpoint and actual value on touchscreen |
| Digital readings time | Setpoint and actual value on touchscreen |
| Dimensions of generator [LxWxH] (mm) | 600 x 300 x 600 |
| Power | 10.0 kW |
| Selection operating mode | via touchscreen |
| Setpoint power | via touchscreen |
| Setpoint temperature | via touchscreen |
| Setpoint timer | via touchscreen |
| Signaling by ... | Installation in operational state: light optional |
| Signaling by ... | Error message: acoustic signal |
| Signaling by ... | End of heating cycle: acoustic signal |
| Temperature measurement | for type K thermocouple |
| Temperature sensor | yes, for max 300 °C / 572 °F |
| Trolley | Option |
| Voltage | 400.0 V |
| Accuracy | ± 3.5 °C / ± 6.3 °F |
| Dimensions display | 7” |
| Extra thermocouple input | + |
| Forced air cooling | + |
| MF Frequency range | 10 – 25 kHz |
| Heat curve in display | + |
| Heating log | + |
| Inductor recognition | + |
| Network connection | + |
| Power frequency | 50 – 60 Hz |
| Series | 3.1 |
| Setpoint temperature curve | + |
| Signal tower | Option |
| USB connection | + |
| Version | 10 |
