1650,66 zł

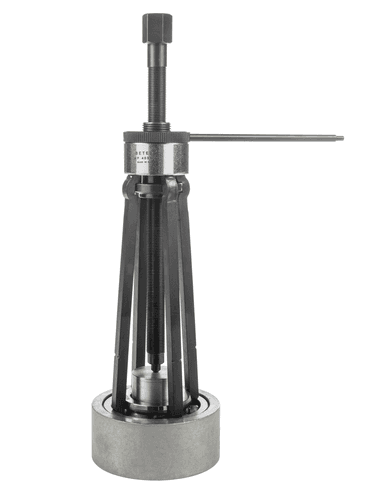

BETEX MP-40100, Pulling device for simultaneous removal of deep groove ball bearings from the shaft and from the housing – or only from a shaft fitted with a tight fit on the inner ring, for up to 23 standard deep groove ball bearings of defined sizes with bore diameters of 10 to 30 mm
| Class description short | Deep groove ball bearing puller, 4-arm |
| Mass netto | 1.42 kg |
| Brand | Betex |
| Delivery scope | Threaded spindle with head and hand lever, 3 sets of 4 puller arms each, 10 support rings, selection aid table, carrying case |
| Dimensions case (mm) | 505 x 480 x 120 |
| Length puller arms no. 11 | 160.0 mm |
| Length puller arms no. 12 | 160.0 mm |
| Length puller arms no. 13 | 180.0 mm |
| Suitable for bearing types | 6000, 6001, 6002, 6003, 6200, 16002, 16003, 16100, 16101, 6004*, 6005*, 6006*, 6201, 6202*, 6203*, 6300*, 6204, 6205, 6301, 6302, 6303, 62/22, 63/22* |

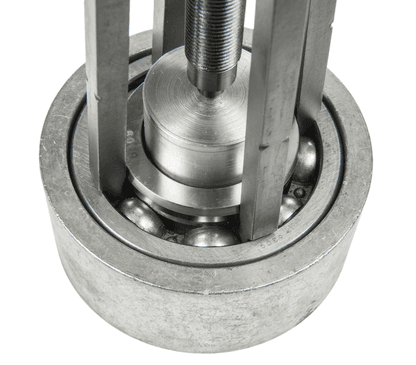

| Use | Claws of the puller arms are placed between inner and outer ring and grip the ball track of the outer ring, removing of sealed bearings possible after prior removal of the seal |
| Version | SP |
