11 623,01 zł

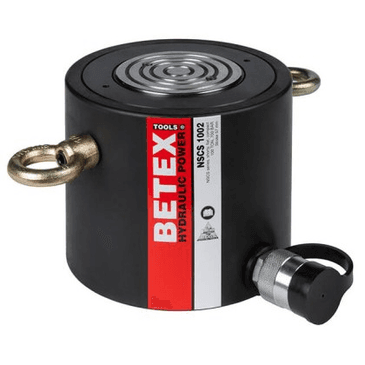

BETEX NSCS Compact cylinder, short stroke, single-acting, spring return, 100T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 22.7 kg |
| Advance force, max. | 1002.0 kN |
| Piston mounting holes, bolt circle | 55.0 mm |
| Base to advance port | 25.0 mm |
| Brand | Betex |
| Capacity class (tons) | 100 |
| Cylinder bore diameter | 135.0 mm |
| Height, extended | 204.5 mm |
| Height, retracted | 146.5 mm |
| Oil capacity | 830.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 165.0 mm |
| Plunger diameter | 92.0 mm |
| Plunger female thread | M8 |
| Plunger thread length | 10.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Piston protrusion | 1.5 mm |
| Stroke | 58.0 mm |
| Series | NSCS |
| Version | 100T |
