2127,16 zł

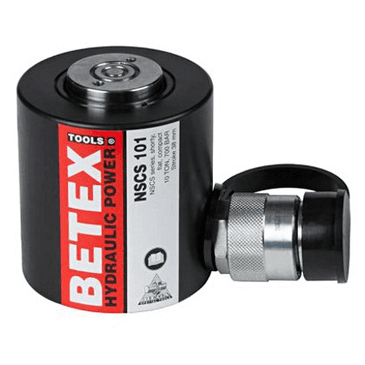

BETEX NSCS Compact cylinder, short stroke, single-acting, spring return, 10T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 4.1 kg |
| Advance force, max. | 101.0 kN |
| Piston mounting holes, bolt circle | 26.0 mm |
| Base to advance port | 17.5 mm |
| Brand | Betex |
| Capacity class (tons) | 10 |
| Cylinder bore diameter | 42.8 mm |
| Height, extended | 126.0 mm |
| Height, retracted | 88.0 mm |
| Oil capacity | 55.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 78.0 mm |
| Plunger diameter | 38.0 mm |
| Plunger female thread | M4 |
| Plunger thread length | 8.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Piston protrusion | 5.0 mm |
| Stroke | 38.0 mm |
| Series | NSCS |
| Version | 10T |
