4558,87 zł

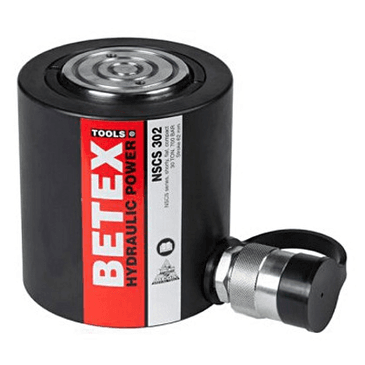

BETEX NSCS Compact cylinder, short stroke, single-acting, spring return, 30T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 6.8 kg |
| Advance force, max. | 309.0 kN |
| Piston mounting holes, bolt circle | 39.0 mm |
| Base to advance port | 19.0 mm |
| Brand | Betex |
| Capacity class (tons) | 30 |
| Cylinder bore diameter | 75.0 mm |
| Height, extended | 179.0 mm |
| Height, retracted | 117.0 mm |
| Oil capacity | 274.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 107.0 mm |
| Plunger diameter | 63.5 mm |
| Plunger female thread | M5 |
| Plunger thread length | 8.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Piston protrusion | 3.0 mm |
| Stroke | 62.0 mm |
| Series | NSCS |
| Version | 30T |
