2715,47 zł

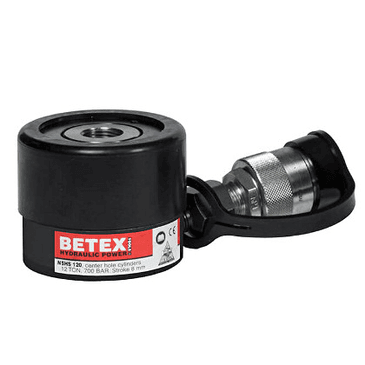

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 12T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 1.5 kg |
| Advance force, max. | 129.0 kN |
| Base mounting holes, bolt circle | 50.8 mm |
| Base mounting holes, thread (UNC) | 5/16"-18 UN |
| Base mounting holes, thread depth | 9.0 mm |
| Base to advance port | 12.5 mm |
| Brand | Betex |
| Capacity class (tons) | 12 |
| Center hole diameter | 19.5 mm |
| Collar thread (UN) | 2¾"-16 UN |
| Collar thread, length | 33.0 mm |
| Cylinder bore diameter | 54.0 mm |
| Height, extended | 68.0 mm |
| Height, retracted | 60.0 mm |
| Oil capacity | 14.8 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 73.0 mm |
| Effective piston area | 18.5 cm² |
| Plunger diameter | 35.0 mm |
| Plunger female thread (UN) | 3/4"-16 UN |
| Plunger thread length | 16.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Stroke | 8.0 mm |
| Series | NSHS |
| Version | 12T |
