6717,52 zł

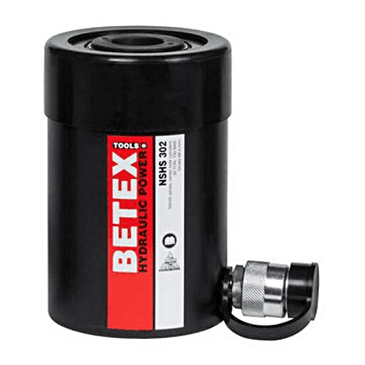

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 30T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 11.0 kg |
| Advance force, max. | 334.0 kN |
| Base mounting holes, bolt circle | 92.0 mm |
| Base mounting holes, thread (UNC) | 3/8"-16 UN |
| Base mounting holes, thread depth | 14.0 mm |
| Base to advance port | 21.5 mm |
| Brand | Betex |
| Capacity class (tons) | 30 |
| Center hole diameter | 34.0 mm |
| Collar thread (UN) | 4½"-12 UN |
| Collar thread, length | 42.0 mm |
| Cylinder bore diameter | 90.0 mm |
| Height, extended | 243.5 mm |
| Height, retracted | 178.5 mm |
| Oil capacity | 310.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 117.0 mm |
| Effective piston area | 47.8 cm² |
| Plunger diameter | 65.0 mm |
| Plunger female thread (UN) | 1⅞"-16 UN |
| Plunger thread length | 25.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 59.9 mm |
| Saddle protrusion from plunger | 0.5 mm |
| Stroke | 65.0 mm |
| Series | NSHS |
| Version | 30T |
