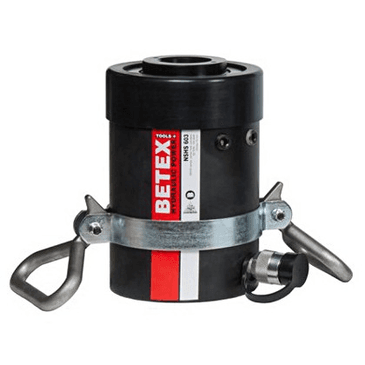

BETEX NSHS Hollow-piston cylinder, single-acting, spring return, 60T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 26.4 kg |
| Advance force, max. | 627.0 kN |
| Base mounting holes, bolt circle | 130.0 mm |
| Base mounting holes, thread (UNC) | 1/2"-13 UN |
| Base mounting holes, thread depth | 14.0 mm |
| Base to advance port | 32.0 mm |
| Brand | Betex |
| Capacity class (tons) | 60 |
| Center hole diameter | 54.0 mm |
| Collar thread (UN) | 6¼"-12 UN |
| Collar thread, length | 50.0 mm |
| Cylinder bore diameter | 125.0 mm |
| Height, extended | 323.5 mm |
| Height, retracted | 247.5 mm |
| Oil capacity | 680.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 158.6 mm |
| Effective piston area | 89.6 cm² |
| Plunger diameter | 90.0 mm |
| Plunger female thread (UN) | 2¾"-16 UN |
| Plunger thread length | 25.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 89.0 mm |
| Saddle protrusion from plunger | 12.5 mm |
| Stroke | 76.0 mm |
| Series | NSHS |
| Version | 60T |
