3802,55 zł

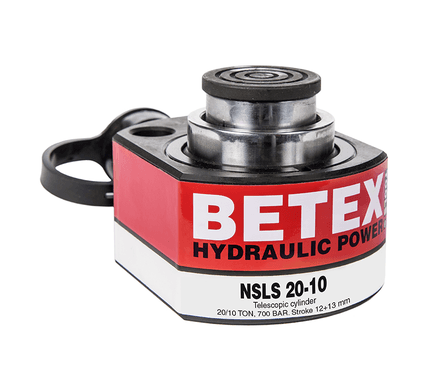

BETEX NSLS Flat cylinder, telescopic, load return, single-acting
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 2.6 kg |
| Advance force, max. | 197.9 kN |
| [Ø] | 7.5 |
| Base to advance port | 19.0 mm |
| Brand | Betex |
| Distance fixing holes | 36.5 mm |
| Capacity class (tons) | 20+10 |
| Cylinder bore diameter | 44.0 mm |
| [Ø] | 11.0 mm |
| Height, extended | 67.0 mm |
| Height, retracted | 42.0 mm |
| Oil capacity | 55.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 60.0 mm |
| Plunger diameter | 38.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle protrusion from plunger | 1.0 mm |
| Stroke | 13.0 mm |
