2074,64 zł

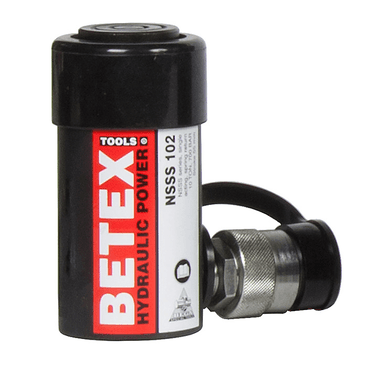

BETEX NSSS Standard cylinder, single-acting, spring return, 10T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 2.3 kg |
| Advance force, max. | 101.0 kN |
| Base mounting holes, bolt circle | 39.0 mm |
| Base mounting holes, thread (UNC) | 5/16"-18 UNC |
| Base mounting holes, thread depth | 13.0 mm |
| Base to advance port | 19.0 mm |
| Brand | Betex |
| Capacity class (tons) | 10 |
| Collar thread (UN) | 2¼"-14 UN |
| Collar thread, length | 30.0 mm |
| Cylinder bore diameter | 42.8 mm |
| Height, extended | 172.0 mm |
| Height, retracted | 121.0 mm |
| Oil capacity | 73.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 57.0 mm |
| PFAS | nein |
| Plunger diameter | 38.0 mm |
| Plunger female thread (UN) | 1"-8 UN |
| Plunger thread length | 19.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 40.0 mm |
| Saddle protrusion from plunger | 6.0 mm |
| Stroke | 51.0 mm |
| Series | NSSS |
| Version | 10T |
