5441,27 zł

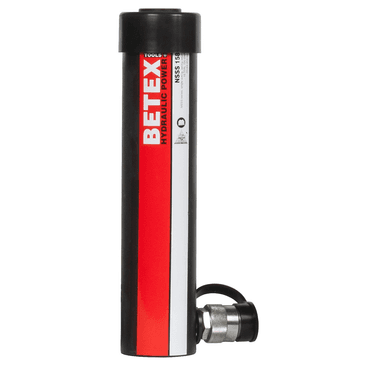

BETEX NSSS Standard cylinder, single-acting, spring return, 15T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 8.2 kg |
| Advance force, max. | 166.0 kN |
| Base mounting holes, bolt circle | 47.7 mm |
| Base mounting holes, thread (UNC) | 3/8"-16 UNC |
| Base mounting holes, thread depth | 13.0 mm |
| Base to advance port | 25.0 mm |
| Brand | Betex |
| Capacity class (tons) | 15 |
| Collar thread (UN) | 2¾"-16 UN |
| Collar thread, length | 30.0 mm |
| Cylinder bore diameter | 55.0 mm |
| Height, extended | 525.5 mm |
| Height, retracted | 322.0 mm |
| Oil capacity | 483.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 73.0 mm |
| PFAS | nein |
| Plunger diameter | 40.0 mm |
| Plunger female thread (UN) | 1"-8 UN |
| Plunger thread length | 25.4 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 38.0 mm |
| Saddle protrusion from plunger | 9.6 mm |
| Stroke | 203.5 mm |
| Series | NSSS |
| Version | 15T |
