7978,03 zł

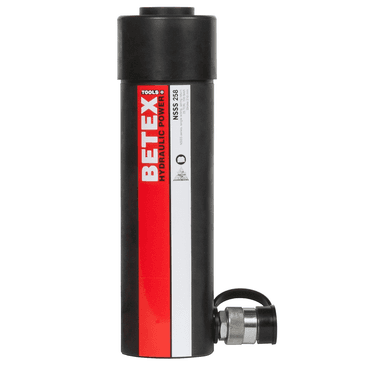

BETEX NSSS Standard cylinder, single-acting, spring return, 25T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 12.2 kg |
| Advance force, max. | 269.0 kN |
| Base mounting holes, bolt circle | 58.0 mm |
| Base mounting holes, thread (UNC) | 1/2"-13 UNC |
| Base mounting holes, thread depth | 19.0 mm |
| Base to advance port | 25.0 mm |
| Brand | Betex |
| Capacity class (tons) | 25 |
| Collar thread (UN) | 3 5/16"-12 UN |
| Collar thread, length | 50.0 mm |
| Cylinder bore diameter | 70.0 mm |
| Height, extended | 533.5 mm |
| Height, retracted | 324.0 mm |
| Oil capacity | 806.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 88.0 mm |
| PFAS | nein |
| Plunger diameter | 55.0 mm |
| Plunger female thread (UN) | 1½"-16 UN |
| Plunger thread length | 25.4 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 50.0 mm |
| Saddle protrusion from plunger | 10.5 mm |
| Stroke | 209.5 mm |
| Series | NSSS |
| Version | 25T |
