9443,33 zł

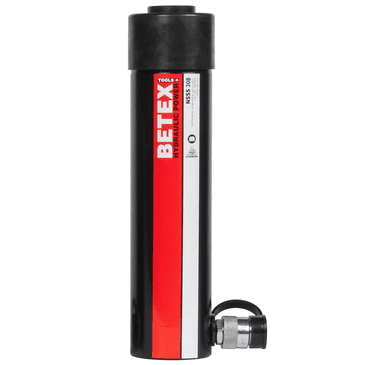

BETEX NSSS Standard cylinder, single-acting, spring return, 30T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 18.1 kg |
| Advance force, max. | 309.0 kN |
| Base to advance port | 57.0 mm |
| Brand | Betex |
| Capacity class (tons) | 30 |
| Collar thread (UN) | 4"-12 UN |
| Collar thread, length | 50.0 mm |
| Cylinder bore diameter | 75.0 mm |
| Height, extended | 597.0 mm |
| Height, retracted | 387.5 mm |
| Oil capacity | 925.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 103.0 mm |
| PFAS | nein |
| Plunger diameter | 60.0 mm |
| Plunger female thread (UN) | 1½"-16 UN |
| Plunger thread length | 25.4 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 50.0 mm |
| Saddle protrusion from plunger | 10.5 mm |
| Stroke | 209.5 mm |
| Series | NSSS |
| Version | 30T |
