10 288,95 zł

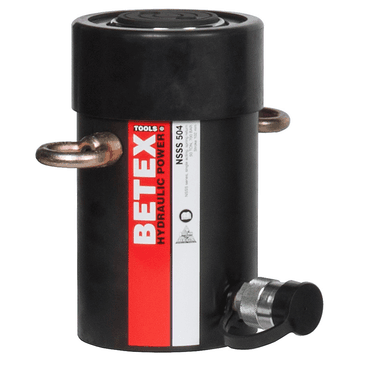

BETEX NSSS Standard cylinder, single-acting, spring return, 50T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 19.1 kg |
| Advance force, max. | 496.0 kN |
| Base mounting holes, bolt circle | 95.0 mm |
| Base mounting holes, thread (UNC) | 1/2"-13 UNC |
| Base mounting holes, thread depth | 19.0 mm |
| Base to advance port | 33.0 mm |
| Brand | Betex |
| Capacity class (tons) | 50 |
| Collar thread (UN) | 5"-12 UN |
| Collar thread, length | 55.0 mm |
| Cylinder bore diameter | 95.0 mm |
| Height, extended | 330.5 mm |
| Height, retracted | 229.0 mm |
| Oil capacity | 719.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 127.0 mm |
| PFAS | nein |
| Plunger diameter | 80.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 70.0 mm |
| Saddle protrusion from plunger | 3.0 mm |
| Stroke | 101.5 mm |
| Series | NSSS |
| Version | 50T |
