1728,03 zł

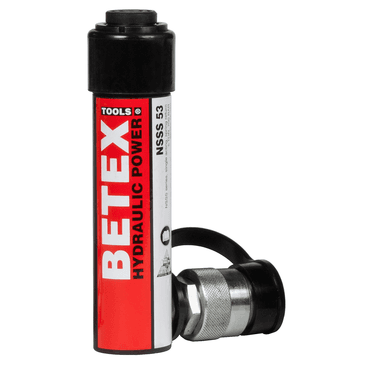

BETEX NSSS Standard cylinder, single-acting, spring return, 5T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 1.5 kg |
| Advance force, max. | 49.5 kN |
| Base mounting holes, bolt circle | 25.0 mm |
| Base mounting holes, thread (UNC) | 1/4"-20 UNC |
| Base mounting holes, thread depth | 14.0 mm |
| Base to advance port | 19.0 mm |
| Brand | Betex |
| Capacity class (tons) | 5 |
| Collar thread (UN) | 1½"-16 UN |
| Collar thread, length | 28.0 mm |
| Cylinder bore diameter | 30.0 mm |
| Height, extended | 241.0 mm |
| Height, retracted | 165.0 mm |
| Oil capacity | 54.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 38.0 mm |
| PFAS | nein |
| Plunger diameter | 25.4 mm |
| Plunger female thread (UN) | 3/4"-16 UN |
| Plunger thread length | 14.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 25.0 mm |
| Saddle protrusion from plunger | 6.0 mm |
| Stroke | 76.0 mm |
| Series | NSSS |
| Version | 5T |
