25 777,36 zł

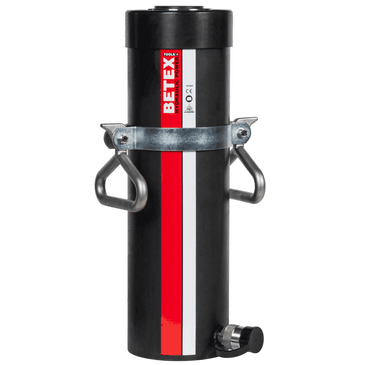

BETEX NSSS Standard cylinder, single-acting, spring return, 75T class
| Class description short | Hydraulic cylinder, 700 bar |
| Mass netto | 59.0 kg |
| Advance force, max. | 791.0 kN |
| Base to advance port | 30.0 mm |
| Brand | Betex |
| Capacity class (tons) | 75 |
| Collar thread (UN) | 5¾"-12 UN |
| Collar thread, length | 45.0 mm |
| Cylinder bore diameter | 120.0 mm |
| Height, extended | 824.5 mm |
| Height, retracted | 491.0 mm |
| Oil capacity | 3770.0 cm³ |
| Operating pressure, max. | 700.0 bar |
| Outer diameter | 152.0 mm |
| PFAS | nein |
| Plunger diameter | 95.0 mm |
| Product specifics | Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap |
| Saddle diameter | 70.0 mm |
| Saddle protrusion from plunger | 3.0 mm |
| Stroke | 333.5 mm |
| Series | NSSS |
| Version | 75T |
