97 214,16 zł

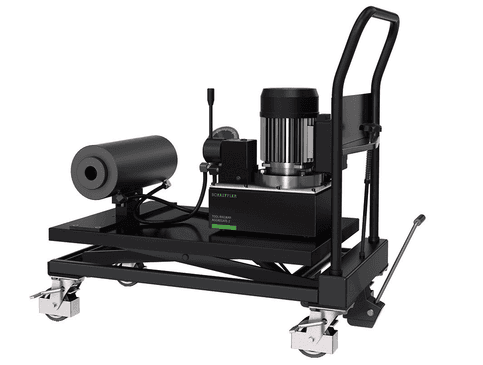

for mounting/dismounting of tapered or cylindrical roller bearing units in wheelset bearings of rail vehicles, standard version
| Class description short | Mobile hydraulic device |
| Mass netto | 155.0 kg |
| Availability | Product is manufactured to order. Request with specification of the application case to customer service. |
| Brand | Schaeffler |
| Castors | 4 swivel castors with brake function |
| Current type | Three-phase AC |
| Dimensions [LxWxH] (mm) | 1050 x 550 x 900 |
| Functional principle | electrically driven hydraulic unit, double action hollow piston cylinder |
| Height adjustment | hydraulic with foot pedal, manually operated lowering valve |
| Max. contact force cylinder | 692.0 kN |
| Max. operating pressure | 700.0 bar |
| Max. working stroke cylinder | 230.0 mm |
| PFAS | nein |
| Power consumption | 1.1 kW |
| Power frequency | 50 – 60 Hz |
| Usability | only in conjunction with bearing/application-specific tool set TOOL-RAILWAY-AXLE... (not included in delivery, separate on request) |
| Voltage | 400.0 V |
| Working height range [bottom – center axis cylinder] (mm) | 435 – 995 |
| Series | TRAG |
