146,99 zł

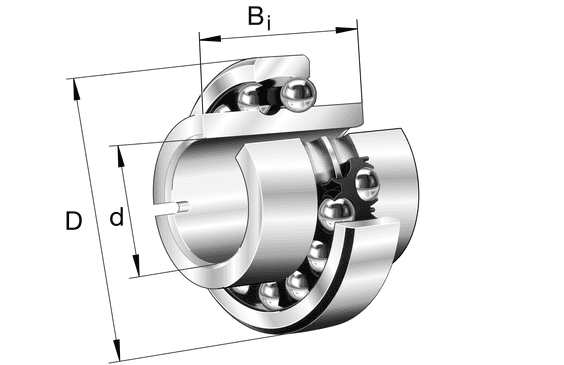

Self-aligning ball bearing 112..-TVH, plastic cage
| Class description short | Self-aligning ball bearing |
| Mass netto | 0.221 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Outside diameter | 52.0 mm |
| Bore diameter | 25.0 mm |
| Total width | 44.0 mm |
| Basic dynamic load rating, radial | 12300.0 N |
| Basic static load rating, radial | 3300.0 N |
| Hight retaining slot | 9.0 mm |
| Cage | TVH |
| Limiting speed | 15500.0 1/min |
| Dynamic axial load factor | 3.65 |
| Fatigue load limit, radial | 209.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.27 |
| Maximum diameter of housing shoulder | 46.4 mm |
| Maximaler Hohlkehlradius | 1.0 mm |
| Static axial load factor | 2.47 |
| Reference speed | 13400.0 1/min |
| Dynamic axial load factor | 2.36 |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Minimum chamfer dimension | 1.0 mm |
| Shoulder diameter outer ring | 43.6 mm |
| Shoulder diameter inner ring | 33.3 mm |
| Width, inner ring | 44.0 mm |
| Width, outer ring | 15.0 mm |
| PFAS | nein |
| Width retaining slot | 7.0 mm |
| Version code | >J |
