274,54 zł

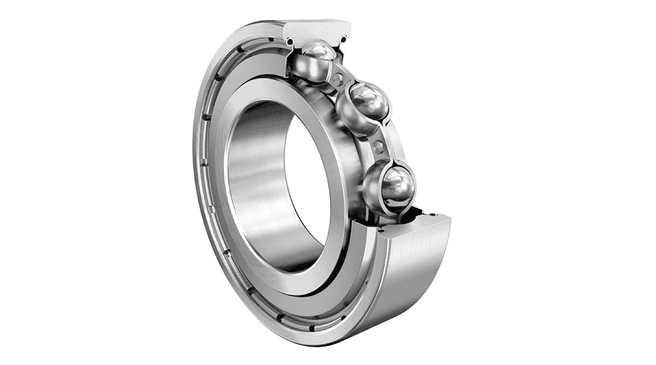

Deep groove ball bearing 62..-2Z, single row, shields, steel sheet metal cage
| Class description short | Deep groove ball bearing |
| Mass netto | 1.49 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Outside diameter | 140.0 mm |
| Bore diameter | 80.0 mm |
| Width | 26.0 mm |
| Tolerance class | PN |
| Basic dynamic load rating, radial | 77000.0 N |
| Basic static load rating, radial | 55000.0 N |
| Type of Seal | 2Z |
| Lubricant | GA13 |
| Cage | JN |
| Bore type | Z |
| Limiting speed | 6200.0 1/min |
| Dimensional / heat stabilization | S0 |
| Fatigue load limit, radial | 3650.0 N |
| Maximum diameter of housing shoulder | 129.0 mm |
| Maximum fillet radius | 2.0 mm |
| Reference speed | 5500.0 1/min |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Calculation factor | 15.0 |
| Minimum chamfer dimension | 2.0 mm |
| Shoulder diameter outer ring | 121.48 mm |
| Caliber diameter outer ring | 124.38 mm |
| Shoulder diameter inner ring | 98.5 mm |
| Minimum diameter shaft shoulder | 91.0 mm |
| Radial internal clearance | C3 (Group 3) |
| PFAS | nein |
