1121,64 zł

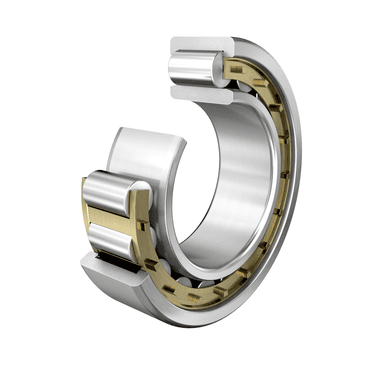

Cylindrical roller bearing NU..-E-XL-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
| Class description short | Cylindrical roller bearing |
| Mass netto | 3.78 kg |
| Width | 37.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 150.0 °C |
| Basic dynamic load rating, radial | 285000.0 N |
| Basic static load rating, radial | 265000.0 N |
| Limiting speed | 7600.0 1/min |
| Reference speed | 4150.0 1/min |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Axial displacement | 1.2 mm |
| Bore diameter | 75.0 mm |
| Brand | FAG |
| Fatigue load limit, radial | 35500.0 N |
| Marketing category | XL |
| Maximum diameter of housing shoulder | 148.0 mm |
| Maximum diameter of shaft shoulder | 93.0 mm |
| Maximum recess radius | 2.0 mm |
| Maximum recess radius | 2.0 mm |
| Minimum diameter shaft shoulder | 87.0 mm |
| Minimum rib diameter outer ring | 136.24 mm |
| Minimum chamfer dimension | 2.1 mm |
| Minimum chamfer dimension | 2.1 mm |
| Minimum shaft shoulder | 97.0 mm |
| Number of rows | 1 |
| Outside diameter | 160.0 mm |
| PFAS | nein |
| Raceway diameter inner ring | 95.0 mm |
| Raceway diameter outer ring | 143.0 mm |
| Radial internal clearance | C4 (Group 4) |
| Tolerance class | PN |
| Cage | M1A |
| Design | E |
