67,77 zł

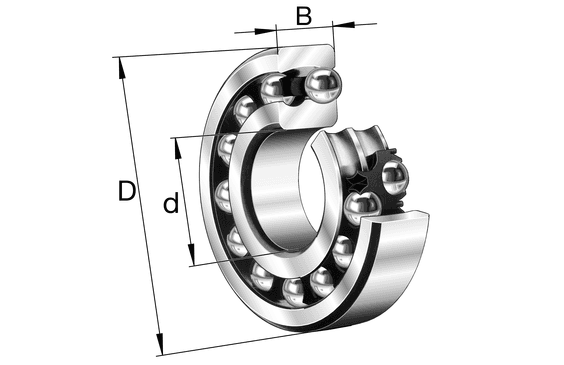

Self-aligning ball bearing 12..-TVH, plastic cage
| Class description short | Self-aligning ball bearing |
| Mass netto | 0.047 kg |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Outside diameter | 35.0 mm |
| Bore diameter | 15.0 mm |
| Width | 11.0 mm |
| Tolerance class | PN |
| Basic dynamic load rating, radial | 7700.0 N |
| Basic static load rating, radial | 1750.0 N |
| Type of Seal | Without |
| Lubricant | Without |
| Cage | TVH |
| Bore type | Z |
| Limiting speed | 23800.0 1/min |
| Version code | >N |
| Dynamic axial load factor | 2.88 |
| Fatigue load limit, radial | 111.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.34 |
| Maximum diameter of housing shoulder | 30.8 mm |
| Maximum fillet radius | 0.6 mm |
| Static axial load factor | 1.95 |
| Reference speed | 19100.0 1/min |
| Dynamic axial load factor | 1.86 |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Minimum chamfer dimension | 0.6 mm |
| Shoulder diameter outer ring | 28.79 mm |
| Shoulder diameter inner ring | 20.15 mm |
| Minimum diameter shaft shoulder | 19.2 mm |
| Radial internal clearance | CN (Group N) |
| PFAS | nein |
