514,51 zł

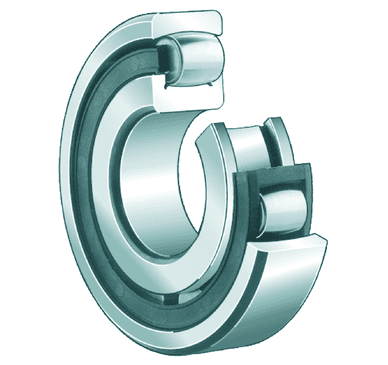

Barrel roller bearings 202, main dimensions to DIN 635-1
| Class description short | Barrel roller bearing |
| Mass netto | 0.111 kg |
| Operating temperature min. | -30.0 °C |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bore diameter outer ring | 39.0 mm |
| Brand | FAG |
| Outside diameter | 47.0 mm |
| Bore diameter | 20.0 mm |
| Width | 14.0 mm |
| Basic dynamic load rating, radial | 20400.0 N |
| Basic static load rating, radial | 19400.0 N |
| Cage | TVP |
| Bore type | Z |
| Limiting speed | 13100.0 1/min |
| Fatigue load limit, radial | 1730.0 N |
| Maximum diameter of housing shoulder | 41.4 mm |
| Operating temperature max. | 120.0 °C |
| Minimum chamfer dimension | 1.0 mm |
| Minimum diameter shaft shoulder | 25.6 mm |
| Radial internal clearance | CN (Group N) |
| Maximum recess radius | 1.0 mm |
| PFAS | nein |
