249,32 zł

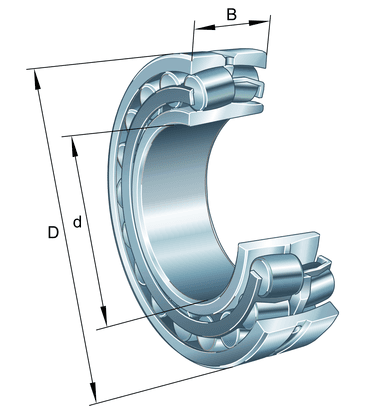

Spherical roller bearings 213..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
| Class description short | Spherical Roller Bearing |
| Mass netto | 0.491 kg |
| Width | 21.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 83000.0 N |
| Basic static load rating, radial | 74000.0 N |
| Limiting speed | 10900.0 1/min |
| Reference speed | 6800.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Adapter sleeve | H307 |
| Bore diameter | 35.0 mm |
| Bore diameter outer ring | 66.6 mm |
| Brand | FAG |
| Dynamic axial load factor | 2.55 |
| Dynamic axial load factor | 3.8 |
| Fatigue load limit, radial | 8300.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.26 |
| Marketing category | XL |
| Maximum diameter of housing shoulder | 71.0 mm |
| Maximum diameter of shaft shoulder | 47.0 mm |
| Maximum recess radius | 1.5 mm |
| Minimum cavity diameter of the sleeve | 39.0 mm |
| Minimum cavity width of the sleeve | 8.0 mm |
| Minimum diameter shaft shoulder | 44.0 mm |
| Minimum chamfer dimension | 1.5 mm |
| Outside diameter | 80.0 mm |
| PFAS | nein |
| Raceway diameter of the inner ring | 47.4 mm |
| Radial internal clearance | CN (Group N) |
| Static axial load factor | 2.5 |
| Cage | TVPB |
| Design | E1 |
| Relubrication feature | Without |
