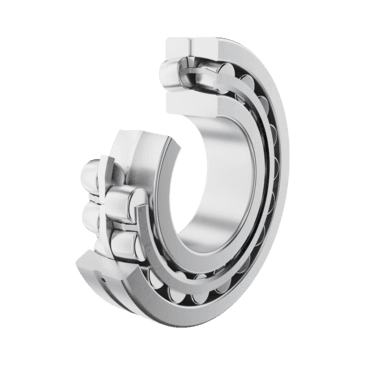

Spherical roller bearings 213..-E1, main dimensions to DIN 635-2
| Class description short | Spherical Roller Bearing |
| Mass netto | 0.722 kg |
| Width | 23.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 200.0 °C |
| Basic dynamic load rating, radial | 109000.0 N |
| Basic static load rating, radial | 107000.0 N |
| Limiting speed | 9800.0 1/min |
| Reference speed | 5200.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Bore diameter | 40.0 mm |
| Bore diameter outer ring | 80.8 mm |
| Bore type | Z |
| Brand | FAG |
| Diameter lubrication hole | 3.2 mm |
| Dynamic axial load factor | 2.95 |
| Dynamic axial load factor | 4.4 |
| Fatigue load limit, radial | 14600.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.23 |
| Marketing category | XL |
| Maximum diameter of housing shoulder | 81.0 mm |
| Maximum recess radius | 1.5 mm |
| Minimum diameter shaft shoulder | 49.0 mm |
| Minimum chamfer dimension | 1.5 mm |
| Outside diameter | 90.0 mm |
| PFAS | nein |
| Raceway diameter of the inner ring | 59.9 mm |
| Radial internal clearance | CN (Group N) |
| Static axial load factor | 2.89 |
| Width of lubricating groove | 4.8 mm |
| Cage | JPA |
| Design | E1 |
| Relubrication feature | Standard |
