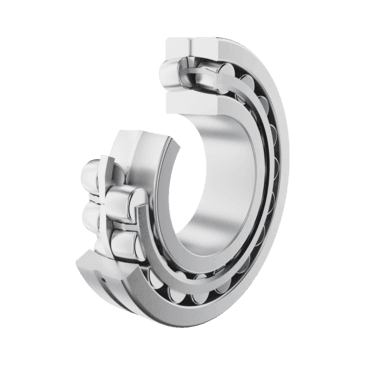

Spherical roller bearings 213..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
| Class description short | Spherical Roller Bearing |
| Mass netto | 0.96 kg |
| Width | 25.0 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 200.0 °C |
| Basic dynamic load rating, radial | 129000.0 N |
| Basic static load rating, radial | 130000.0 N |
| Limiting speed | 9000.0 1/min |
| Reference speed | 4750.0 1/min |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Adapter sleeve | H309 |
| Bore diameter | 45.0 mm |
| Bore diameter outer ring | 89.8 mm |
| Bore type | K |
| Brand | FAG |
| Diameter lubrication hole | 3.2 mm |
| Dynamic axial load factor | 3.17 |
| Dynamic axial load factor | 4.72 |
| Fatigue load limit, radial | 17700.0 N |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.21 |
| Marketing category | XL |
| Maximum diameter of housing shoulder | 91.0 mm |
| Maximum diameter of shaft shoulder | 67.0 mm |
| Maximum recess radius | 1.5 mm |
| Minimum cavity diameter of the sleeve | 50.0 mm |
| Minimum cavity width of the sleeve | 5.0 mm |
| Minimum diameter shaft shoulder | 54.0 mm |
| Minimum chamfer dimension | 1.5 mm |
| Outside diameter | 100.0 mm |
| PFAS | nein |
| Raceway diameter of the inner ring | 67.6 mm |
| Radial internal clearance | C3 (Group 3) |
| Static axial load factor | 3.1 |
| Width of lubricating groove | 4.8 mm |
| Withdrawal sleeve | AH309 |
| Cage | JPA |
| Design | E1 |
| Relubrication feature | Standard |
