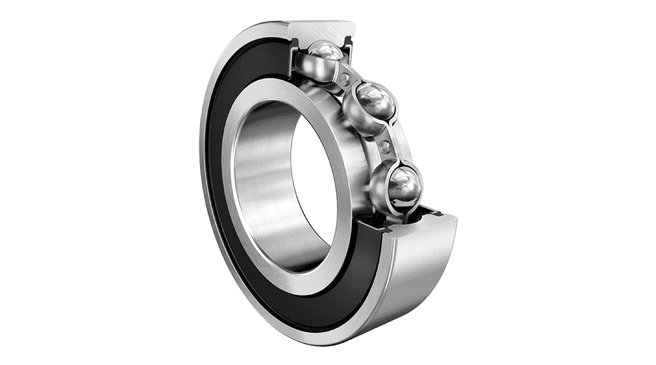

Deep groove ball bearing S618..-2RSR, corrosion-resistant materials, single row, seals, steel sheet metal cage
| Class description short | Deep groove ball bearing |
| Mass netto | 27.0 g |
| REACH | REACH conform |
| RoHS | RoHS compliant |
| Brand | FAG |
| Outside diameter | 42.0 mm |
| Bore diameter | 30.0 mm |
| Width | 7.0 mm |
| Tolerance class | PN |
| Basic dynamic load rating, radial | 4400.0 N |
| Basic static load rating, radial | 3350.0 N |
| Type of Seal | 2RSR |
| Lubricant | Lubricating grease |
| Cage | JN |
| Bore type | Z |
| Limiting speed | 8000.0 1/min |
| Dimensional / heat stabilization | SN |
| Fatigue load limit, radial | 194.0 N |
| Maximum diameter of housing shoulder | 40.0 mm |
| Maximum fillet radius | 0.3 mm |
| Operating temperature min. | -30.0 °C |
| Operating temperature max. | 100.0 °C |
| Calculation factor | 16.6 |
| Material combination | S |
| Minimum chamfer dimension | 0.3 mm |
| Shoulder diameter outer ring | 38.4 mm |
| Caliber diameter outer ring | 39.9 mm |
| Shoulder diameter inner ring | 33.6 mm |
| Minimum diameter shaft shoulder | 32.0 mm |
| Radial internal clearance | CN (Group N) |
| Version code | >N |
