7171,76 zł

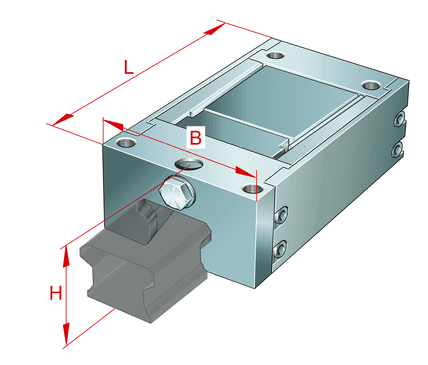

Braking and clamping element BKE.TKVD.., hydraulic connector on end face, for four-row linear recirculating ball bearing and guideway assembly
| Class description short | Braking/clamping element |
| Mass netto | 4.11 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Brand | INA |
| Clamping force | 4300.0 N |
| Distance | 15.0 mm |
| Distance | 5.0 mm |
| Height sytem | 60.0 mm |
| Hole pattern | 70.0 mm |
| Hole pattern | 60.0 mm |
| Hole pattern | 113.0 mm |
| Length braking and clamping element | 141.0 mm |
| Mounting dimension | 10.0 mm |
| PFAS | nein |
| Space (system) | 13.0 mm |
| Tightening torque above | 83.0 Nm |
| Width of braking and clamping element | 85.0 mm |
| Adapter plate | ohne |
| Size Code | 45 |
| Size thread above for DIN ISO 4762-12.9 | M10 |
| Size thread | M8x1 |
