237,64 zł

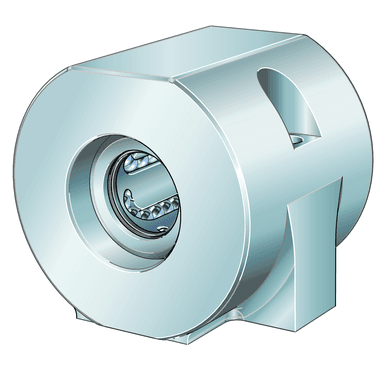

Linear Ball Bearing and Housing Units, Sealed, Greased, Corrosion-resistant Design Possible
| Class description short | Linear Ball Bearing and Housing Unit |
| Mass netto | 0.496 kg |
| Width | 55.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Brand | INA |
| Diameter of ball complement | 25.0 mm |
| Height | 57.5 mm |
| Axis center | 30.0 mm |
| Length | 49.0 mm |
| Dynamic load rating | 2280.0 N |
| Static load rating | 1670.0 N |
| PFAS | nein |
| Tolerance | 0.015 mm |
| Tolerance | 0.1 mm |
| Tolerance | 0.5 mm |
| Seal | PP |
| Size code | 25 |
