5254,56 zł

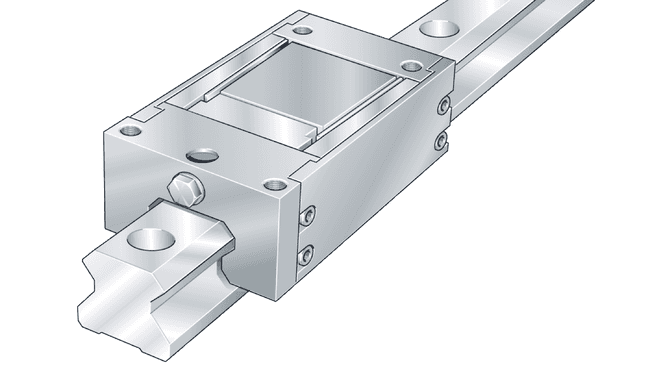

Braking and clamping element BKE.TSX..-D, hydraulic connector on end face, for linear recirculating roller bearing and guideway assembly
| Class description short | Braking/clamping element |
| Mass netto | 0.64 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Brand | INA |
| Clamping force | 1000.0 N |
| Distance | 10.0 mm |
| Distance | 5.0 mm |
| Height sytem | 36.0 mm |
| Hole pattern | 38.0 mm |
| Hole pattern | 34.0 mm |
| Hole pattern | 75.0 mm |
| Length braking and clamping element | 91.0 mm |
| Max. diameter of the oil feed hole | 6.0 mm |
| Mounting dimension | 6.0 mm |
| PFAS | nein |
| Space (system) | 6.2 mm |
| Tightening torque above | 17.4 Nm |
| Width of braking and clamping element | 47.0 mm |
| Adapter plate | without |
| Size Code | 25 |
| Size thread above for DIN ISO 4762-12.9 | M6 |
| Size thread | M6x1 |
| Version | D |
