338,74 zł

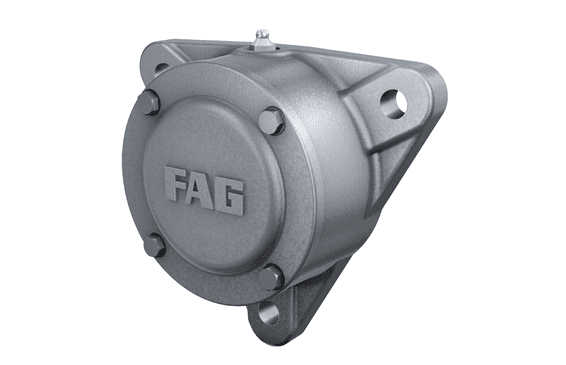

Flanged housing for various bearing types, with conical bore and clamping sleeve, closed on one side
| Class description short | Flanged housing |
| Mass netto | 2.0 kg |
| REACH | REACH_SVHC! |
| RoHS | RoHS compliant with declarable substances |
| Brand | FAG |
| Connection thread for lubrication | M10x1 |
| Distance flange to bearing seat | 17.0 mm |
| Distance shaft axis | 48.5 mm |
| Flange width | 145.0 mm |
| Height flange | 130.0 mm |
| Number of fastening holes | 3.0 |
| Outside diameter bearing | 72.0 mm |
| PFAS | nein |
| Pich circle diameter fixing holes | 130.0 mm |
| Shaft diameter | 30.0 mm |
| Size of fixing screws | M12 |
| Thickness of flange | 12.0 mm |
