UCT214-J7

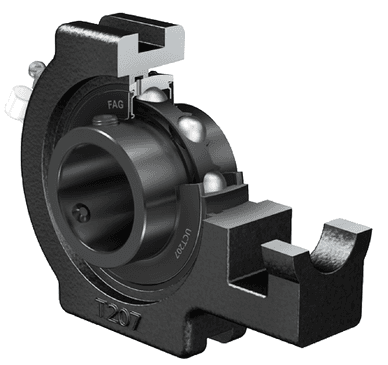

Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion

Class description short	Take-up housing unit
Mass netto	6.677 kg
Width inner ring	74.6 mm
Operating temperature min.	-20.0 °C
Operating temperature max.	120.0 °C
Basic dynamic load rating, radial	66000.0 N
Basic static load rating, radial	44000.0 N
REACH	REACH compliant with declarable lead proportion
RoHS	RoHS compliant with declarable substances
Bearing designation	UC214
Bore diameter	70.0 mm
Brand	FAG
Connection thread for lubrication	M6
Distance of raceway to locking collar	44.4 mm
Distance guidance grooves	151.0 mm
Distance shaft axis	137.0 mm
Fatigue load limit, radial	2300.0 N
Fixing bore	41.0 mm
Bearing in kit	UC214
Bearing sealed	Yes
Bearing sort	RIBB
Bearing split	No
Housing opening	durchgehend
Height bearing seat	137.0 mm
Housing height	167.0 mm
Housing in kit	UCT214-J7
Housing material	GG
Housing shape	Loch_seitlich
Housing sort	Take-up
Housing split	Nein
Inner diameter bearing	70.0 mm
Housing length	224.0 mm
Location on shaft	Acc
Housing qty bolts	1
Outer diameter bearing	125.0 mm
Sealing type	LIP
Housing width	74.6 mm
Basic dynamic load rating	66000.0 N
Basic static load rating	44000.0 N
Height	167.0 mm
Height housing fixing side	111.0 mm
Height recess	70.0 mm
Housing	T214
Length fixed link	21.0 mm
Length guidance groove	121.0 mm
Length total	224.0 mm
Lower distance guidance groove tolerance	-0.8 mm
Lower width guidance groove tolerance	0.0 mm
Material	GG
PFAS	nein
Upper distance guidance groove tolerance	0.0 mm
Upper width guidance groove tolerance	0.3 mm
Width guidance groove	26.0 mm
Width housing	46.0 mm
Width housing fixing side	70.0 mm
Width recess	32.0 mm
