216,48 zł

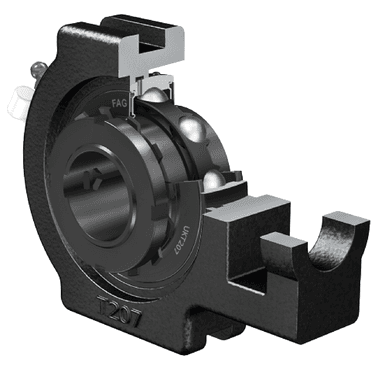

Housing units UKT, cast iron housing, radial insert ball bearing with adapter sleeve, RSR seals, for linear motion
| Class description short | Take-up housing unit |
| Mass netto | 2.5 kg |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 100.0 °C |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Bearing designation | UK209 |
| Bore diameter | 40.0 mm |
| Brand | FAG |
| Connection thread for lubrication | M6 |
| Distance guidance grooves | 102.0 mm |
| Distance shaft axis | 87.0 mm |
| Fixing bore | 29.0 mm |
| Bearing in kit | UK209 |
| Bearing sealed | Yes |
| Bearing sort | RIBB |
| Bearing split | No |
| Housing opening | durchgehend |
| Height bearing seat | 87.0 mm |
| Housing height | 117.0 mm |
| Housing in kit | UKT209-J7 |
| Housing material | GG |
| Housing shape | Loch_seitlich |
| Housing sort | Take-up |
| Housing split | Nein |
| Inner diameter bearing | 40.0 mm |
| Housing length | 144.0 mm |
| Location on shaft | K |
| Housing qty bolts | 1 |
| Outer diameter bearing | 85.0 mm |
| Sealing type | LIP |
| Housing width | 50.0 mm |
| Basic dynamic load rating | 34500.0 N |
| Basic static load rating | 20400.0 N |
| Height | 117.0 mm |
| Height housing fixing side | 83.0 mm |
| Height recess | 49.0 mm |
| Housing | T209 |
| Length fixed link | 16.0 mm |
| Length guidance groove | 83.0 mm |
| Length total | 144.0 mm |
| Locking collar total width | 50.0 mm |
| Lower distance guidance groove tolerance | -0.5 mm |
| Lower width guidance groove tolerance | 0.0 mm |
| Material | GG |
| PFAS | nein |
| Upper distance guidance groove tolerance | 0.0 mm |
| Upper width guidance groove tolerance | 0.2 mm |
| Width guidance groove | 16.0 mm |
| Width housing | 35.0 mm |
| Width housing fixing side | 49.0 mm |
| Width recess | 19.0 mm |
