189,91 zł

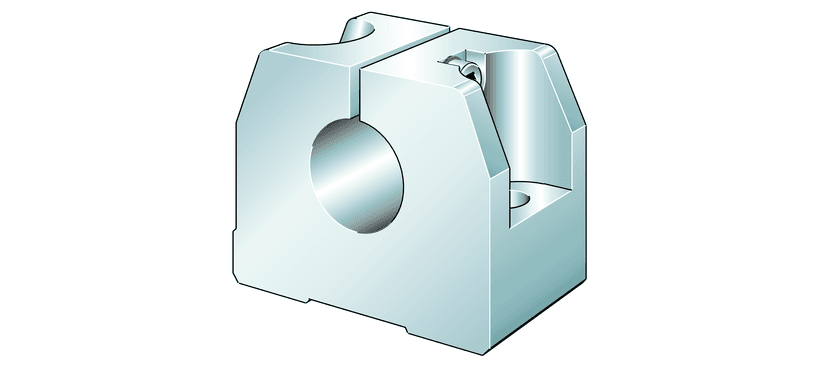

Shaft block
| Class description short | Shaft block |
| Mass netto | 30.0 g |
| Width across flats | 32.0 mm |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Brand | INA |
| Diameter | 8.0 mm |
| Heigth | 27.0 mm |
| Length | 16.0 mm |
| Lower tolerance | 0.15 mm |
| Mounting Dimension | 16.0 mm |
| Mounting Dimension | 25.0 mm |
| Mounting Dimension | 16.0 mm |
| Mounting Dimension | 20.6 mm |
| Mounting Dimension | 5.0 mm |
| Mounting Dimension | 13.0 mm |
| Mounting Dimension | 4.3 mm |
| Mounting Dimension | 10.0 mm |
| Mounting Dimension | 11.0 mm |
| Mounting Dimension | 22.0 mm |
| PFAS | nein |
| Tolerance | H8 |
| Upper tolerance | 0.1 mm |
| Lower tolerance | 0.1 mm |
| Upper tolerance | 0.15 mm |
| Width across Flat | 2.5 mm |
| Mounting thread below | M5 |
| Size code | 08 |
| Sie thread fixing screws above | M4 |
| Suffix | B |
