433,94 zł

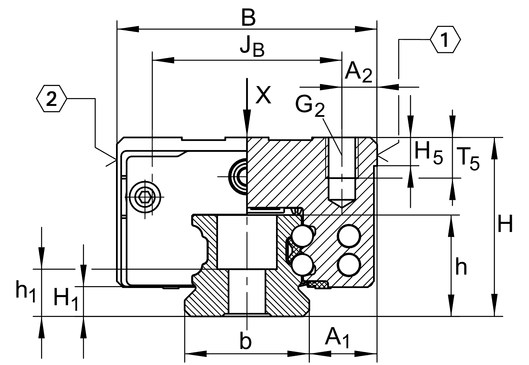

Carriages KWVE..-B-ES, carriage for four-row linear ball bearing and guideway assembly, expanded type, narrow design
| Class description short | Recirculating ball bearing carriage |
| Mass netto | 315.0 g |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G3 |
| Brand | INA |
| Position lubrication connector | 8.0 mm |
| Position lubrication connector | 4.6 mm |
| Thread depth | 7.5 mm |
| Maximum permissible screw depth for lubrication connectors | 7.0 mm |
| Maximum permissible screw depth for lubrication connectors | 5.5 mm |
| Lubrication connector | M3 |
| Distance from locating edge to hole | 5.0 mm |
| Distance from locating edge on carriage to locating edge on guideway | 11.0 mm |
| Free space, system dimension | 4.5 mm |
| Height system | 28.0 mm |
| Overall length carriage | 71.4 mm |
| Dynamic load rating | 13100.0 N |
| Static load rating | 27000.0 N |
| Material name | KWVE |
| Static moment rating about X axis | 332.0 Nm |
| Static moment rating about Y axis | 240.0 Nm |
| Static moment rating about Z axis | 240.0 Nm |
| PFAS | nein |
| Position lubrication connector | 9.4 mm |
| Preload class | V0 |
| Maximum tightening torque | 10.0 Nm |
| Width carriage | 42.0 mm |
| Width rail | 20.0 mm |
| Carriage design | ES |
| Lubrication connector | M5 |
| Size code | 20 |
| Fixing screws above (DIN ISO 4762-12.9) | M5 |
| Version | B |
