4117,30 zł

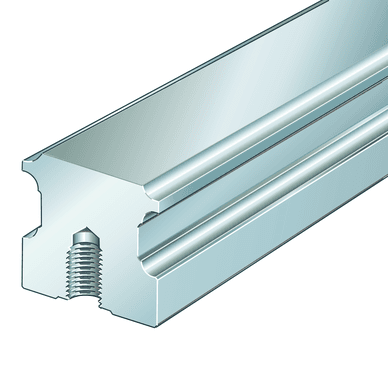

Guideways for six-row linear recirculating ball bearing and guideway assembly, for screw mounting from below
| Class description short | Profile rail |
| Mass netto | 9.44 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Accuracy class | G2 |
| Brand | INA |
| Distance | 53.0 mm |
| Distance | 53.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| Guideway length | 4000.0 mm |
| ~Guideway length | ~4000 |
| Height | 18.0 mm |
| Increment | 60.0 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 3900.0 mm |
| PFAS | nein |
| Thread length | 10.0 mm |
| Tightening torque | 17.0 Nm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | KWSE20... |
| Usable linear systems | KUSE20... |
| Width | 20.0 mm |
| Location of guideway | U |
| Size code | 20 |
| Fixing screws (DIN ISO 4762-12.9) | M6 |
