13 237,51 zł

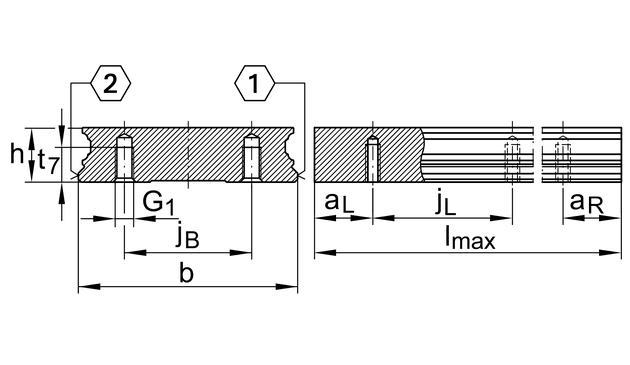

Guideways for four-row linear recirculating ball bearing and guideway assembly KUVE..-W, wide guideway, suitable for screw mounting from below
| Class description short | Profile rail |
| Mass netto | 107.28 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Accuracy class | G3 |
| Brand | INA |
| Distance | 15.0 mm |
| Distance | 71.0 mm |
| Distance | 71.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| ~guideway length | 6000.0 mm |
| Height | 27.0 mm |
| Increment | 60.0 mm |
| Increment | 80.0 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 6000.0 mm |
| PFAS | nein |
| Thread length | 15.0 mm |
| Tightening torque | 41.0 Nm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | KWVE35-W... |
| Usable linear systems | KUVE35-W... |
| Width | 90.0 mm |
| Guideway design | W |
| Size Code | 35 |
| Thread | M8 |
