12 793,85 zł

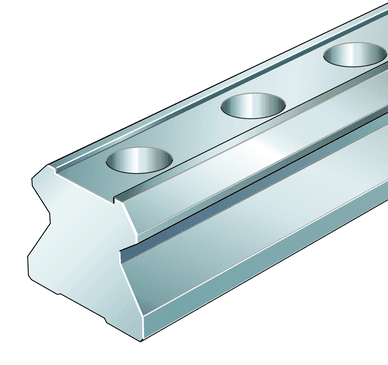

Guideways for linear recirculating roller bearing, with slot for covering strip, TSX..-E-ADE
| Class description short | Profile rail |
| Mass netto | 54.6 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| Accuracy class | G1 |
| Bore diameter | 13.4 mm |
| Bore diameter | 3.9 mm |
| Brand | INA |
| Depth | 1.1 mm |
| Distance | 41.0 mm |
| Distance | 41.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| Guideway length | 6000.0 mm |
| ~Guideway length | ~6000 |
| Height | 38.0 mm |
| Increment | 52.5 mm |
| Length | 19.5 mm |
| Lower tolerance | -0.5 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 5985.0 mm |
| PFAS | nein |
| Thickness | 0.6 mm |
| Tightening torque | 140.0 Nm |
| Upper tolerance | 0.5 mm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | RWU45-E-...; RWU45-F-... |
| Usable linear systems | RUE45-E-...; RUE45-F-... |
| Width | 22.0 mm |
| Width | 45.0 mm |
| Guideway design | ADE |
| Size code | 45 |
| Fixing screws (DIN ISO 4762-12.9) | M12 |
| Version | E |
