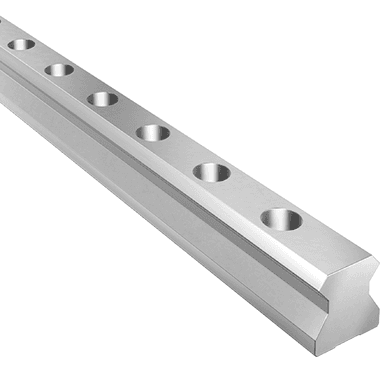

Guideways for linear recirculating roller bearing, TSX..-E
| Class description short | Profile rail |
| Mass netto | 79.06 kg |
| REACH | REACH compliant for SVHC free linear products (acc to PL responsibles) |
| RoHS | RoHS compliant |
| Accuracy class | G1 |
| Bore diameter | 15.4 mm |
| Brand | INA |
| Distance | 47.0 mm |
| Distance | 47.0 mm |
| Distance | 20.0 mm |
| Distance | 20.0 mm |
| Guideway length | 6000.0 mm |
| ~Guideway length | ~6000 |
| Height | 45.0 mm |
| Increment | 60.0 mm |
| Length | 22.5 mm |
| Lower tolerance | -0.5 mm |
| Lower tolerance | -0.035 mm |
| Max length single piece guideway | 5880.0 mm |
| PFAS | nein |
| Tightening torque | 220.0 Nm |
| Upper tolerance | 0.5 mm |
| Upper tolerance | -0.005 mm |
| Usable carriage(s) | RWU55-E-...; RWU55-F-... |
| Usable linear systems | RUE55-E-...; RUE55-F-... |
| Width | 53.0 mm |
| Size code | 55 |
| Fixing screws (DIN ISO 4762-12.9) | M14 |
| Version | E |
