138,25 zł

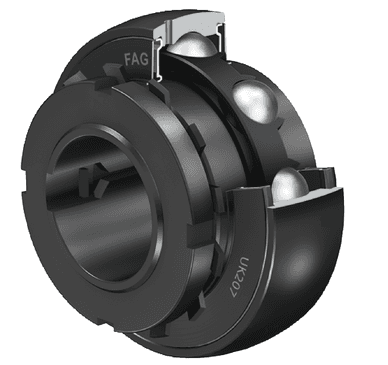

Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
| Class description short | Radial insert ball bearing |
| Mass netto | 0.83 kg |
| Width | 32.0 mm |
| Operating temperature min. | -20.0 °C |
| Operating temperature max. | 120.0 °C |
| Basic dynamic load rating, radial | 34500.0 N |
| Basic static load rating, radial | 20400.0 N |
| Adapter sleeve | H2309-J30QH |
| Brand | FAG |
| Calculation factor | 14.1 |
| Distance to lubrication hole | 6.3 mm |
| Fatigue load limit, radial | 1060.0 N |
| Fuse | MB9 |
| Inner diameter of sleeve | 40.0 mm |
| Locknut | KM9 |
| Outside diameter locking collar/locknut | 65.0 mm |
| Outside diameter | 85.0 mm |
| PFAS | nein |
| Sealing total width | 22.6 mm |
| Sleeve | H.H2309 |
| Total width of bearing | 50.0 mm |
| Width nut and lock | 11.0 mm |
| Width, outer ring | 22.0 mm |
| Sealing | 2RSR |
| Shape of outer surface | B |
