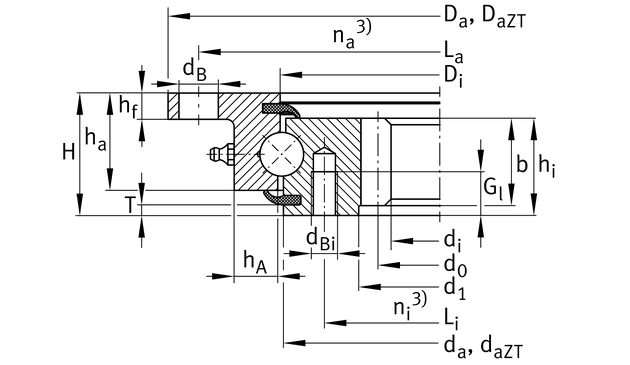

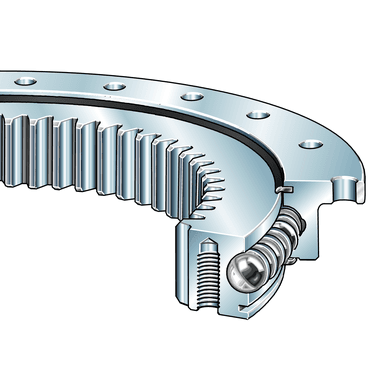

Four point contact bearings, light series 20, internal gear teeth, lip seals on both sides
| Class description short | Slewing ring, 4 point contact bearing, internal gear teeth |
| Mass netto | 27.3 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial | 124000.0 N |
| Basic static load rating, radial | 110000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 137000.0 N |
| Basic static load rating, axial | 295000.0 N |
| Bore Diameter | 325.0 mm |
| Inner diameter outer ring | 415.5 mm |
| Brand | INA |
| Diameter turning inner ring | 350.0 mm |
| Diameter turning inner ring lower tolerance | 0.0 mm |
| Diameter turning inner ring upper tolerance | 0.5 mm |
| Fixing bore | 18.0 mm |
| Height of flange | 12.0 mm |
| Height | 56.0 mm |
| Inner diameter outer ring lower tolerance | 0.0 mm |
| Inner diameter outer ring upper tolerance | 0.5 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 26200.0 N |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 17700.0 N |
| Max. radial load fixing screws (friction locking) | 49600.0 N |
| Modul of gearing | 5.0 mm |
| Number of teeth | 67.0 |
| Outside diameter inner ring | 412.5 mm |
| Outside diameter inner ring lower tolerance | -0.5 mm |
| Outside diameter inner ring upper tolerance | 0.0 mm |
| Outside Diameter | 518.0 mm |
| Outside diameter lower tolerance | -0.5 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitch circle diameter gearing | 335.0 mm |
| Pitchcircle diameter fixing holes inner ring | 375.0 mm |
| Pitchcircle diameter fixing holes outer ring | 490.0 mm |
| Number of fixing holes in inner ring | 12.0 |
| Number of fixing holes in outer ring | 8.0 |
| Radial internal clearance | Standard_VL |
| Ring cross section | 20.0 mm |
| Thread depth fixing hole | 20.0 mm |
| Tread fixing bore | M12 |
| Width inner ring | 44.5 mm |
| Width gearing | 40.0 mm |
| Width outer ring | 44.5 mm |
| Gearing | N |
