22 043,69 zł

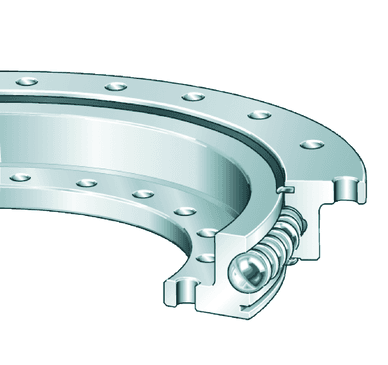

Slewing ring, 4 point contact bearing, without gear teeth
| Class description short | Slewing ring, 4 point contact bearing, without gear teeth |
| Mass netto | 62.5 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial (for radial load only) | 179000.0 N |
| Basic static load rating, radial (for radial load only) | 290000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 198000.0 N |
| Basic static load rating, axial | 780000.0 N |
| Inner diameter outer ring | 1095.5 mm |
| Brand | INA |
| Centring diameter outer ring | 1196.0 mm |
| Diameter centring outer ring tolerance | -IT8 |
| Diameter centring inner ring | 986.0 mm |
| Diameter centring inner ring tolerance | IT8 |
| Fixing bore | 18.0 mm |
| Height | 56.0 mm |
| Width inner ring | 44.5 mm |
| Inner diameter outer ring lower tolerance | 0.0 mm |
| Inner diameter outer ring upper tolerance | 0.7 mm |
| Length centering inner ring | 12.0 mm |
| Length centering outer ring | 12.0 mm |
| Max. radial load fixing screws (friction locking) | 141000.0 N |
| Outside diameter inner ring | 1092.5 mm |
| Outside diameter inner ring lower tolerance | -0.7 mm |
| Outside diameter inner ring upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitchcircle diameter fixing holes inner ring | 1012.0 mm |
| Pitchcircle diameter fixing holes outer ring | 1170.0 mm |
| Number of fixing holes in inner ring | 20.0 |
| Number of fixing holes in outer ring | 16.0 |
| Radial internal clearance | Standard_VL |
| Ring cross section | 20.0 mm |
| Width outer ring | 44.5 mm |
| Centering | ZT |
