37 452,76 zł

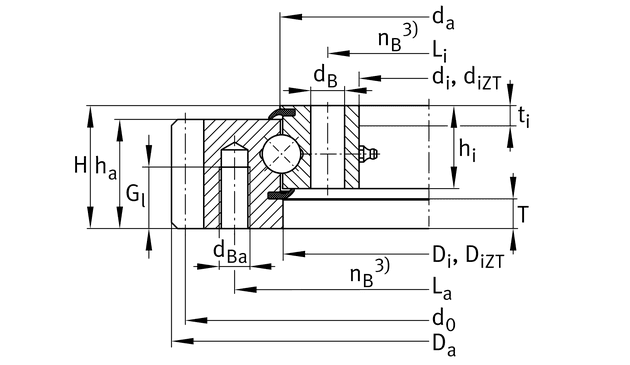

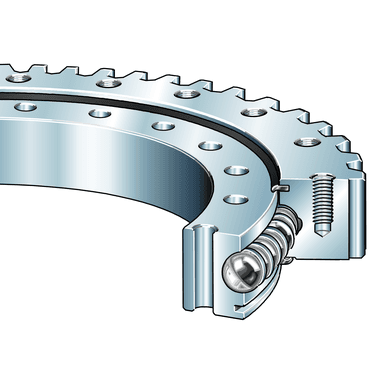

Slewing ring, 4 point contact bearing, external gear teeth
| Class description short | Slewing ring, 4 point contact bearing, external gear teeth |
| Mass netto | 91.1 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial | 179000.0 N |
| Basic static load rating, radial | 810000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 198000.0 N |
| Basic static load rating, axial | 1770000.0 N |
| Bore Diameter | 1022.0 mm |
| Inner diameter outer ring | 1095.5 mm |
| Bore diameter lower tolerance | 0.0 mm |
| Bore diameter upper tolerance | 0.7 mm |
| Brand | INA |
| Diameter centring outer ring | 1097.0 mm |
| Diameter centring outer ring tolerance | IT8 |
| Diameter centring inner ring | 1024.0 mm |
| Diameter centring inner ring tolerance | IT8 |
| Fixing bore | 14.0 mm |
| Height | 56.0 mm |
| Height of inner ring | 44.5 mm |
| Inner diameter outer ring lower tolerance | 0.0 mm |
| Inner diameter outer ring upper tolerance | 0.7 mm |
| Length centering inner ring | 10.0 mm |
| Length centering outer ring | 4.5 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 42000.0 N |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 28300.0 N |
| Max. radial load fixing screws (friction locking) | 181700.0 N |
| Modul of gearing | 8.0 mm |
| Number of teeth | 148.0 |
| Outside diameter inner ring | 1092.5 mm |
| Outside diameter inner ring lower tolerance | -0.7 mm |
| Outside diameter inner ring upper tolerance | 0.0 mm |
| Outside Diameter | 1198.1 mm |
| PFAS | nein |
| Pitch circle diameter gearing | 1184.0 mm |
| Pitchcircle diameter fixing holes inner ring | 1048.0 mm |
| Pitchcircle diameter fixing holes outer ring | 1135.0 mm |
| Profile shift | -0.119 mm |
| Number of fixing holes in inner ring | 48.0 |
| Number of fixing holes in outer ring | 44.0 |
| Thread depth fixing hole | 20.0 mm |
| Tread fixing bore | M12 |
| Width outer ring | 44.5 mm |
| Centering | ZT |
| Gearing | N |
| Preload | VSP |
