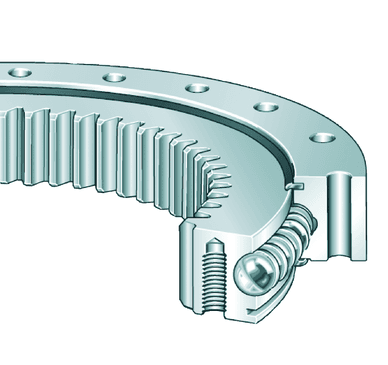

Slewing ring, 4 point contact bearing, internal gear teeth
| Class description short | Slewing ring, 4 point contact bearing, internal gear teeth |
| Mass netto | 41.3 kg |
| Operating temperature min. | -25.0 °C |
| Operating temperature max. | 80.0 °C |
| Basic dynamic load rating, radial | 138000.0 N |
| Basic static load rating, radial | 400000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 152000.0 N |
| Basic static load rating, axial | 870000.0 N |
| Bore Diameter | 444.0 mm |
| Inner diameter outer ring | 545.5 mm |
| Brand | INA |
| Fixing bore | 14.0 mm |
| Height | 56.0 mm |
| Inner diameter outer ring lower tolerance | 0.0 mm |
| Inner diameter outer ring upper tolerance | 0.5 mm |
| Length centering inner ring | 4.5 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 35000.0 N |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 23700.0 N |
| Max. radial load fixing screws (friction locking) | 132200.0 N |
| Modul of gearing | 6.0 mm |
| Number of teeth | 76.0 |
| Outside diameter inner ring | 542.5 mm |
| Outside diameter inner ring lower tolerance | -0.5 mm |
| Outside diameter inner ring upper tolerance | 0.0 mm |
| Outside Diameter | 616.0 mm |
| Outside diameter lower tolerance | -0.5 mm |
| Outside diameter upper tolerance | 0.0 mm |
| PFAS | nein |
| Pitch circle diameter gearing | 456.0 mm |
| Pitchcircle diameter fixing holes inner ring | 505.0 mm |
| Pitchcircle diameter fixing holes outer ring | 590.0 mm |
| Number of fixing holes in inner ring | 32.0 |
| Number of fixing holes in outer ring | 32.0 |
| Radial internal clearance | Standard_SL |
| Thread depth fixing hole | 20.0 mm |
| Tread fixing bore | M12 |
| Width inner ring | 44.5 mm |
| Width outer ring | 44.5 mm |
| Gearing | N |
