58 173,10 zł

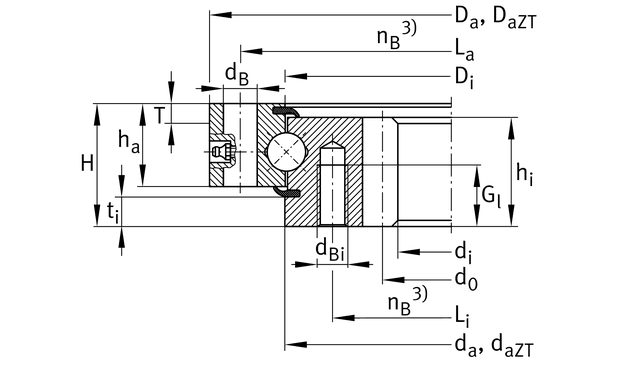

Slewing ring, 4 point contact bearing, internal gear teeth
| Class description short | Slewing ring, 4 point contact bearing, internal gear teeth |
| Mass netto | 149.0 kg |
| Basic dynamic load rating, radial | 335000.0 N |
| Basic static load rating, radial | 1560000.0 N |
| REACH | REACH compliant with declarable lead proportion |
| RoHS | RoHS compliant with declarable substances |
| Basic dynamic load rating, axial | 370000.0 N |
| Basic static load rating, axial | 3400000.0 N |
| Bore Diameter | 810.0 mm |
| Inner diameter outer ring | 953.0 mm |
| Brand | INA |
| Fixing bore | 22.0 mm |
| Height | 80.0 mm |
| Length centering inner ring | 19.0 mm |
| Length centering outer ring | 15.0 mm |
| Max. tooth force against tooth fracture (at a shock factor of 1,35) | 98900.0 N |
| Max. tooth force root fatigue strenght (at a shock factor of 1,2) | 68000.0 N |
| Normal axial clearance max. | 0.24 mm |
| Normal radial clearance max. | 0.13 mm |
| Max. radial load fixing screws (friction locking) | 363300.0 N |
| Normal axial clearance min. | 0.05 mm |
| Normal radial clearance min. | 0.03 mm |
| Modul of gearing | 10.0 mm |
| Number of teeth | 83.0 |
| Outside diameter inner ring | 957.0 mm |
| Outside Diameter | 1055.0 mm |
| PFAS | nein |
| Pitch circle diameter gearing | 830.0 mm |
| Pitchcircle diameter fixing holes inner ring | 894.0 mm |
| Pitchcircle diameter fixing holes outer ring | 1015.0 mm |
| Number of fixing holes in inner ring | 30.0 |
| Number of fixing holes in outer ring | 30.0 |
| Thread depth fixing hole | 40.0 mm |
| Tread fixing bore | M20 |
| Width inner ring | 71.0 mm |
| Width outer ring | 54.0 mm |
| Gearing | N |
